Original DeTomaso Pantera
Parts

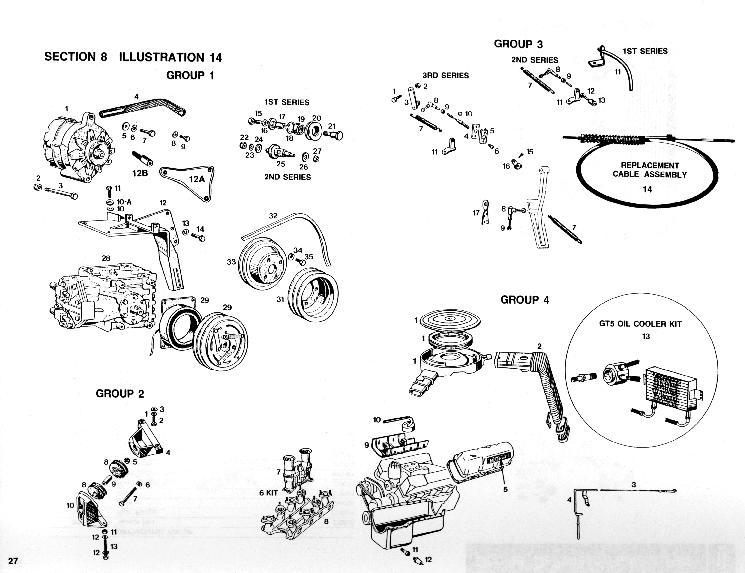

Please scroll down below the following illustration
and select part number for ordering purposes.
Illustration Part Description Part Number
Group I Front Engine Drive Accessories
1 Alternator Assembly 61 Amp 08100A
2 Nut Alternator Retaining Bolt 7716 - 20 ELN 08101A
3 Bolt Alternator Retaining 7/16 - 20 x 4 SAE 05015A
4 Arm Alternator Adjusfing 08102A
4 Arm Alternator Mounting Used w/Australian Engine 08102B
5 Flat Wisher 3/8" 08103A
6 Lock Washer 3/8" 08104A
7 Bolt Arm to Alternator 3/8 x 16 x 1" 08105A
8 Lock Washer 3/8" 08104A
9 Bolt Arm to Water Pump 3/8" x 16 x 1" 08106A
10 Flat Washer 3/8" 08103A
10A Lock Washer 3/8" 08104A
11 Bolt Compressor to Bracket 3/8 - 16 x 1-1/4 USS 08107A
12 Bracket A.C. Compressor Mounting (lst Series) 08108A
12 Bracket A.C. Compressor Mounting (2nd Series) 08108B
12 Bracket A.C. Compressor Mounting (Used w/Aus Engine) 08108C
12A Bracket Alternator Mounting (Used w/Australian Engine)08108D
12B Spacer Alternator Mounting (Used w/Australian Engine) 08108E
13 Lock Washer 5/16" 02099A
14 Bolt Bracket to Engine 5/16 - 18 x 1-1/4 USS 08109A
15 Bolt Idler Pulley Shaft to Bracket M12 x 1.5 x 30mm 08110A
16 Flat Washer M12 08111A
17 Shaft Idler Pulley lst Series 08112A
18 Snap Ring 08113A
19 Bearing Assembly Air Conditioner Idler 08114A
20 Pulley Air Conditioner Idler 08115A
21 Bolt Idler Pulley Retaining 08116A
22 Nut Idler Pulley Shaft to Bracket M12 x 1.75 08117A
23 Lock Washer M12 05023A
24 Flat Washer M12 08118A
25 Shaft Idler Pulley 2nd Series 08119A
26 Flat Washer M12 06039A
27 Nut Idler Pulley Retainer M12 x 1.75 ELN 02009A
28 Compressor Assembly Air Conditioner (York Type) 08120A
29 Clutch Assembly Air Conditioner Compressor 08121A
31 Pulley Crankshaft Outer 08122A
32 Bell Alternator 06123A
32 Belt Air Conditioner 08123B
33 Pulley Water Pump 08122B
34 Lock Washer 5/16" 02014A
35 Bolt-Pulley to w/Pump 5/16 - 24 x 314 SAE 08124A
Group 2 Engine Mount to Chassis
1 Lock Washer 7/16" 05021A
2 Bolt 7/16 - 14 x 1 1/2 USS 08200A
3 flat Washer 7/l6" 01216A
4 Bracket Engine Mount on Engine L & R 08201A
5 Nut Engine Mount Bolt M12 x 1.75 ELN 02009A
6 Washer Engine Mount Bolt M12 Flat 06039A
7 Bolt Engine Mount Connecting M12 x 1.75 x 90 06040A
6 Insulator Engine Mount 08202A
9 Spacer Engine Mount Insulator 08203A
10 Bracket Engine Mount on Chassis RH 08204A
10A Bracket Engine Mount on Chassis LH 08204B
11 Nut Engine Bracket on Chassis M12 x 1.75 ELN 02009A
12 Flat Washer on Chassis Lower M12 08205A
12 Flat Washer Engine Mount on Chassis Upper M12 06039A
13 Bolt Engine Mount to Chassis M12 x 1.75 x 130mm 08206A
Group 3 Throttle Cable & Brackets
1 Bolt Throttle Arm to Carburetor 08300A
2 Nut 08301A
3 Arm Throttle Cable to Carburetor Adapter 08302A
4 Seal Cable to Firewall 3rd Series 08303A
5 Retainer Throttle Cable Seal to Firewall 08304A
6 Screw Retainer to Firewall 08305A
7 Spring Throttle and Pedal Return 01412A
8 Joint Assembly Throttle Cable End wtball & Clip 08306A
9 Nut Throttle Cable to Joint M5 x .8 09034B
10 Clip Throttle Cable to Bracket 3rd Series 08307A
11 Bracket Throttle Cable to Engine tat Series 083O8A
11 Bracket Throttle Cable to Engine 2nd Series
with Threaded Hole 08308B
11 Bracket Throttle Cable to Engine 3rd Series 08308C
12 Nut Jamb Type Fitting to Bracket 2nd Series 08309A
13 Fitting Throttle Cable to-Bracket 2nd Series 08310A
14 Throttle Cable 1st & 2nd Replaced by 3rd Series 08311A
14 Throttle Cable Assembly w/Spring 3rd Series 08311B
14 Throttle Cable GTS from #9000 08311C
15 Screw 08312A
16 Clamp Throttle Cable to Console 083l3A
17 Bracket Throttle Cable to Console (Required to Convert 1st &
2nd Series Steel Tube to 3rd Series Flex Cable) 06314A
Group 4 Engine Accessories
1 Air Cleaner Assembly 08400A
2 Pickup Tube Fresh Air 1974 Typical 08401A
3 Dipstick Engine Oil 38 - 5/8" Long 08402A
4 Dipstick Tube (Extended Type) 08403A
5 Emblem deTomaso on Valve Cover 08404A
6 Kit Weber Carb & Manifold deTomaso 08405A
7 Carburetor Weber 08406A
8 Manifold Weber Carburetors 08407A
9 Windage Tray Engine Crankshaft 08408A
10 Oil Pan w/Pickup Tube 10 Quart 08409A
11 Fitting - Oil Temperature Sender 08410A
12 Sender - Oil Temperature 08411A
13 Oil Cooler Kit - Complete 08412A
