Please click here to view larger image
|

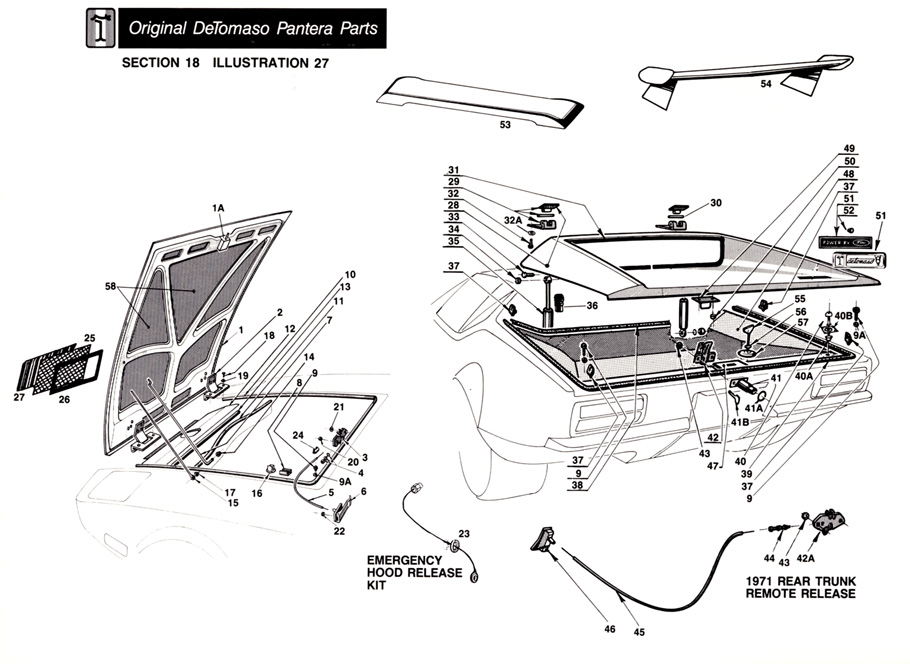

Section 18 Illustration 27
Illustration | Part Description | Part Number |
1 |
Hood Assembly w/o Holes for Vents |
18100A |
1 |
Hood Assembly w/ Holes for Vents |
18100B |
1A |
Hood Pin Assembly |
18101A |
2 |
Hinge Assembly Front Hood |
18102A |
3 |
Latch Front Hood |
18103A |
4 |
Fitting Hood Cable to Body |
18104A |
5 |
Cable Assembly Front Hood Release |
18105A |
5 |
Cable Assembly Front Hood Release GT5 Outer |
18105B |
5 |
Cable Assembly Front Hood Release GT5 Inner |
18105C |
6 |
Handle Front Hood Release |
18106A |
7 |
Hood Prop 1st Series Replaced by #15 |
|
8 |
Retainer Hood Prop (U-Shaped Rubber) |
18107A |
9 |
Bumper Front & Rear |
18108A |
9A |
Nut Hood Bumper Jamb M6 X 1.0 |
11020B |
10 |
Weatherstrip Front Hood Opening |
18109A |
11 |
Weatherstrip Front Hood Opening Front Trunk Front |
18109B |
12 |
Deflector Radiator Upper Air |
11041A |
13 |
Weatherstrip Deflector to Radiator w/ #12 Only |
|
14 |
Hood Prop Rod Retainer 1st Series Deleted |
|
15 |
Hood Prop (Chrome) |
18110A |
16 |
Retainer Hood Prop to Body (Nylon) |
18111A |
17 |
Nut Hood Rod to Body (Chrome Acorn Type) |
18112A |
18 |
Bolt Hood Hinge to Body and Hood M8 X 1.25 X 25mm |
18113A |
19 |
Flat Washer Hood Latch to Body M6 |
18113B |
20 |
Nut Hood Latch to Body M6 X 1.0 |
11020A |
21 |
Flat Washer Hood Latch to Body M6 |
18114A |
22 |
Nut Hood Release Handle to Body M5 X .8 |
16033A |
23 |
Kit Emergency Hood Release |
18115A |
24 |
Clamp Hood Cable |
18116A |
25 |
Screen Hood Grille |
18117A |
26 |
Bezel Hood Grille |
18118A |
27 |
Grille Front Hood (Vent) |
18119A |
28 |
Deck Lid Rear Before #1285 (Flat Center) |
18120A |
28 |
Deck Lid Rear #1285 to #2638 Replaced by #18120C |
18120B |
28 |
Deck Lid Rear from #2638 |
18120C |
29 |
Hinge Assembly Rear Deck Lid |
18121A |
30 |
Pin Rear Deck Lid Hinge |
18122A |
31 |
Deck Lid Trim RH to Car #1285 (Metal) |
18123A |
31 |
Deck Lid Trim LH to Car #1285 (Metal) |
18123B |
31 |
Deck Lid Trim Center Cap to Car #1285 (Metal) |
18123C |
31 |
Deck Lid Trim From #1285 Thin Style 3/8 |
18123D |
31 |
Deck Lid Trim Thick Style GTS 5/8" |
18123E |
32 |
Bolt Deck Lid Hinge to Roof M8 X 1.25 X 25mm |
18113A |
32A |
Flat Washer Deck Lid Bolt M8 |
18113B |
33 |
Bolt Deck Lid Shock (Allen Type) M10 X 1.25 X 35mm |
18124A |
33 |
Bolt Deck Lid Shock (10mm Hex) M6 X 1 X 35mm |
18124B |
34 |
Spacer Deck Lid Shock Used w/Bolt #18124B |
18125A |
35 |
Shock Rear Deck Lid Support |
18126A |
36 |
Boot Deck Lid Shock (Deleted w/ New Shock) |
18127A |
37 |
Bumper Not Used |
|
38 |
Weatherstrip Rear Trunk (Front) |
18128A |
39 |
Weatherstrip Rear Trunk Opening on Body |
18128B |
40 |
Retainer Rear Trunk Liner Allen Bolt & Washer |
18129A |
40 |
Retainer Rear Trunk Liner (Dzus Fastener) |
18129B |
40A |
Plug Assembly Dzus Fastener Plate (Dust) |
18129CA |
40B |
Plate Dzus Fastener Retaining |
18129D |
41 |
Lock and Key Rear Trunk |
18130A |
41A |
Grommet Trunk Lock |
18131A |
41B |
Key Blank Rear Trunk Lock & Doors |
18132A |
42 |
Latch Rear Deck Lid on Body |
18133A |
42 |
Latch Rear Deck on Body GT5 (From #9000) |
18133B |
42A |
Latch Rear Deck Lid w/ Remote Release |
18103A |
43 |
Nut Latch to Body M6 X 1mm |
11020B |
44 |
Fitting Cable to Body |
18134A |
45 |
Cable Assembly |
18135A |
46 |
Handle Assembly Remote Trunk Release |
18136A |
47 |
Cover Assembly Trunk Latch Before #1285 |
18137A |
48 |
Trunk Assembly to Car #1285 |
18138A |
48 |
Trunk Assembly from #1285 to Service #50103 |
18138B |
48 |
Trunk Assembly from Service #50103 |
18138C |
48 |
Trunk Assembly 84 GT5 w/o Carpet From #9000 |
18138D |
48 |
Trunk Assembly GT5 w/ Carpet (Black) From #9000 |
18138E |
49 |
Striker Rear Deck Lid #1285 to 2640 |
18139A |
49 |
Striker Rear Deck Lid #2640 to #4930 R/B 18139C |
18139B |
49 |
Striker Rear Deck Lid From #4930 |
18139C |
50 |
Nut Striker to Deck Lid M6 X1mm |
11020B |
51 |
Emblem Rear Deck Lid (Powered by Ford) |
18140A |
51 |
Emblem Rear Deck Lid (DeTomaso V8) |
18140B |
52 |
Nut (Barrel Type) Emblem to Deck Lid |
18141A |
53 |
Spoiler Rear Deck Lid |
18142A |
54 |
Wing Assembly 83-84 GT5 (Aluminum & Steel) |
18032A |
54 |
Wing Assembly 85 GT5-S (Carbon Fiber) |
18032B |
55 |
Wing Bolt Spare Tire Retainer |
18143A |
56 |
Washer Spare Tire Retainer |
18144A |
57 |
Plate Spare Tire Retainer |
18145A |
58 |
Liner Set Front Hood (Quilted) |
18146A |
58 |
Liner Set Rear Deck Lid (Quilted) |
18146B |
