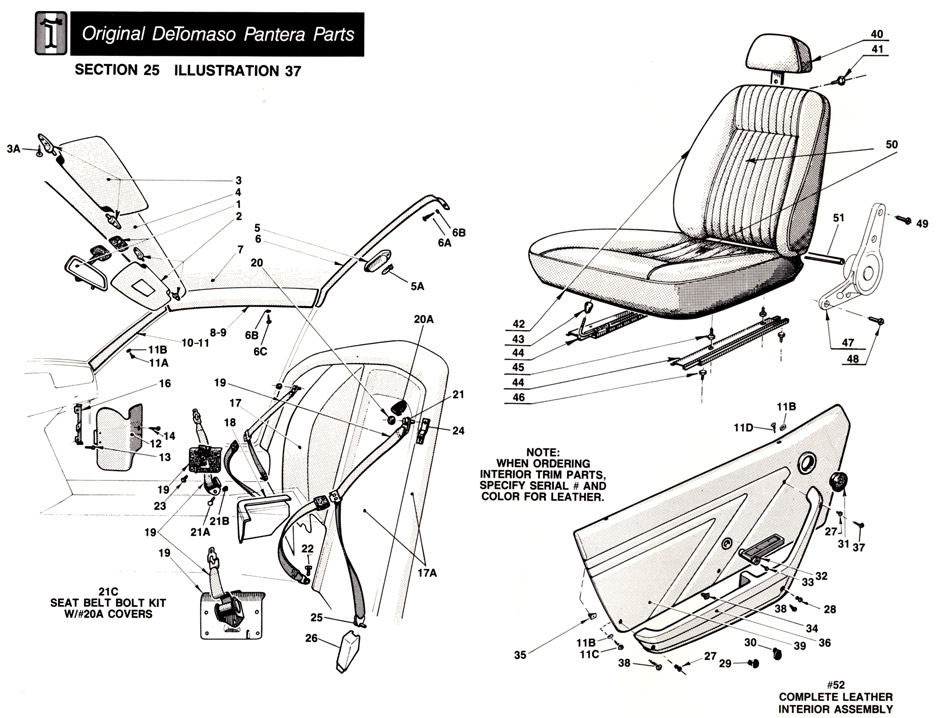

Section 25 Illustration 37

Illustration Part Description Part Number
1

Mirror Inside Rear View

25001A

1

Mirror Inside Rear View (Bonded on w/Shield)

25001B

1

Mirror Base Bonded Type Mirror

25001C

2

Visor RH with Brackets (White) Replaced by B

25002A

2

Visor Rh with Brackets (Grey)

25002B

3

Visor LH with Brackets (White ) Replaced by B

25003A

3

Visor LH with Brackets (Grey)

25003B

3A

Screw Visor to Roof (Chrome)

25004A

4

Bow Headliner Front

25005A

5

Lamp Assembly Courtesy on Roof

25006A

5

Lamp Assembly Courtesy on Roof w/Switch

25006B

5A

Bulb Courtesy Lamp on Roof

25007A

6

Bow Headliner Rear

25008A

6A

Screw Headliner Bow to Roof Chrome (1-1/4" long)

25009A

6B

Bezel Headliner Bow to Roof Chrome

25010A

6C

Screw Headliner Bow to Roof Chrome (3/4" long)

25009B

7

Headliner Assembly

25011A

8

Bow Headliner RH

25012A

9

Bow Headliner LH

25012B

10

Molding w/Shield Post Inner RH Simulated Black Leather

25014A

10

Molding w/ Shield Post Inner RH Leather GT5

25014B

11

Molding w/ Shield Post Inner LH Simulated Black Leather

25015A

11

Molding w/ Shield Post Inner LH Leather GT5

25015B

11A

Screw Molding to Post Black

25016A

11B

Bezel Black

25017A

11

Screw Door Panel to Door Black (3/4" Long )

25016A

11D

Screw Door Panel to Door Black (1-1/4" Long)

25016B

12

Cover w/ Hinge Fuse Box with Trim RH

25017A

12

Cover w/ Hinge Relay Panel with Trim LH

25017B

13

Screw Hinge to Inner Fender #8 x  1/2 " Round Head

25053A

14

Screw Trim Cover Thumb Type

15038A

16

Bracket Trim Panel Hinge

25018A

17

Cover Assembly Firewall Before #2000

25019A

17

Cover Assembly Firewall from #2000 to #5284

25019B

17

Cover Assembly Firewall from 5284 to Body #51640

25019C

17

Cover Assembly Firewall after Body #51640 w/ Seat belt Retractor

25019D

17

Cover Assembly Firewall (As Above #D) Leather

25019E

17

Cover Assembly Firewall GT5 Leather

25019F

17A

Leather only for GT5 Cover

25019G

18

Trim Cover Park Brake Control Steel w/ Trim

25020A

18

Trim Cover Park Brake Control Plastic 73-74 Console

25020B

18

Trim Cover GT5 w/ Control on L Side Console

25020C

19

Seat Belt Assembly  71 RH & LH

25021A

19

Seat Belt Assembly RH w/out Rear Retractor

25021B

19

Seat Belt Assembly LH w/ out Rear Retractor

25021E

19

Seat Belt Assembly RH w/ Rear Retractor

25021C

19

Seat Belt Assembly LH w/ Rear Retractor

25021F

20

Cap Shoulder Harness Bolt (Round Type)

25022A

20A

Cap Shoulder Harness Bolt 74-85 Style

25022B

21

Bolt Shoulder Harness to Firewall

25023A

21A

Bolt Seat Belt to Side Plate

25024A

21B

Nut Seat Belt to Side Plate

25025A

21C

Kit Seat Belt Bolt w/ Covers

25023C

22

Bolt Seat Belt to Floor

25023B

23

Bolt Seat Belt Plate to Floor (Round Phillips)

25026A

24

Retainer Shoulder Harness Storage

25027A

25

Bolt Shoulder Harness Retractor to Body

25028A

26

Cover Shoulder Harness Retractor

25029A

27

Plug Arm Rest Trim (Short) Rubber

09039A

28

Plug Arm Rest Trim (Long) Rubber

25029F

29

Plug Arm Rest Trim Flat Plastic

25029B

29

Plug Arm Rest Trim GT5 Flat with Leather

25029C

30

Plug Arm Rest Trim Angle Plastic

25029D

30

Plug Arm Rest Trim GT5 Angle with Leather

25029E

31

Plug Emergency Window Access

25030A

31

Plug Emergency Window Access GT5 w/ Leather

25029A

32

Handle Door (Inner) RH Black

25031A

32

Handle Door (Inner) RH GT5 w/ Leather

25031B

32

Handle Door (Inner) LH Black

25032A

32

Handle Door (Inner) LH GT5 w/ Leather

25032B

33

Screw Door Handle Retaining

25033A

34

Anchor Arm Rest Screw to Door (Square Plastic)

25034A

35

Clip Door Panel to Door

25035A

36

Arm Rest RH w/ Rubber Type Plugs

25036A

36

Arm Rest RH w/ Plastic Type Plugs

25036B

36

Arm Rest RH GT5 with Leather

25036C

36

Arm Rest LH w/Rubber Type Plugs

25037A

36

Arm Rest LH w/ Plastic Type Plugs

25037B

36

Arm Rest LH GT5 with Leather

25037C

37

Screw Arm Rest to Door M6 x 1 x 40mm

25038A

38

Screw Arm Rest to Door Sheet Metal Type

25038B

39

Door Panel RH Before # 1450

25039A

39

Door Panel RH from #1450

25039B

39

Door Panel RH w/Leather GT5

25039C

39

Door Panel RH w/ Leather w/ Wood GT5

25039D

39

Door Panel LH Before # 1450

25040A

39

Door Panel LH from #1450

25040B

39

Door Panel LH w/Leather GT5

25040C

39

Door Panel LH w/ Leather w/ Wood GT5

25040D

40

Headrest

25041A

40

Headrest Leather GT5

25041B

41

Knob Headrest Adjustment

25042A

41

Knob Headrest Adjustment from #9000

25042B

42

Seat Assembly RH (71) Non Perforated

25043A

42

Seat Assembly RH with Perforations

25043B

42

Seat Assembly RH Europe (Specify Country)

25043C

42

Seat Assembly RH Leather GT5

25043D

42

Seat Assembly LH  (71) Non Perforated

25044A

42

Seat Assembly LH  with Perforations

25044B

42

Seat Assembly LH  Europe (Specify Country)

25044C

42

Seat Assembly LH  Leather GT5

25044D

43

Knob Seat Track Adjustment

25045A

44

Track Assembly RH w/o Latch (14-3/4" Long)

25046A

44

Track Assembly RH w/o Latch (17-3/4" Long)

25046B

44

Track Assembly RH w/Latch (14-3/4" Long)

25046C

44

Track Assembly RH w/ Latch (17-3/4" Long)

25046D

44

Track Assembly LH w/o Latch (14-3/4" Long)

25047A

44

Track Assembly LH w/o Latch (17-3/4" Long)

25047B

44

Track Assembly LH w/Latch (14-3/4" Long)

25047C

44

Track Assembly LH w/ Latch (17-3/4" Long)

25047D

45

Bolt Seat Track to Seat

25048A

46

Bolt Seat Track to Floor

25048B

47

Seat Back Mechanism RH Black

25049A

47

Seat Back Mechanism LH Black

25049B

47

Seat Back Mechanism RH Passenger Seat w/Lever Chrome

25049C

47

Seat Back Mechanism RH Passenger Seat w/oLever Chrome

25049D

47

Seat Back Mechanism LH Driver Seat w/Lever Chrome

25049E

47

Seat Back Mechanism LH  Driver Seat w/oLever Chrome

25049F

48

Bolt Mechanism to Seat Lower M8 x 1.25 x 15mm

25050A

49

Bolt Mechanism to Seat Upper M8 x 1.25 x 30mm

25050B

50

Cober with Perforations (One Seat)

25051A

51

Shaft Seat Mechanism Pivot

25052A

NOTE:

When Ordering Trim Parts Covered in Leather Specify Color Code: A-White, B-Cream, C-Beige, D-Saddle, E-Brown, F-Burgundy, G-Blue, H-Black, I-Gray


52

Leather Interior w/oWood Complete w/o Gauges and Switches

25053A

52

Leather Interior w/ Wood Complete w/ Gauges and Switches

25053B
