• Original DeTomaso Pantera Parts
    Section 3 Illustration 7

  • Prices are intentionally not presented due to parts availability, changing currency exchange rates and manufacturer/supplier price increases that are beyond our control.

  • For additional discounts, please click here to learn about our Platinum Program.

  • Please call or email us for pricing and questions at: 714-744-1398.
    Thank you.


PI Motorsports, Inc.
serving the DeTomaso Enthusiast since 1996
owned and operated by DeTomaso enthusiasts

1040 North Batavia Suite G
Orange, California 92867
telephone: (714) 744-1398
fax: (714) 744-1397
email

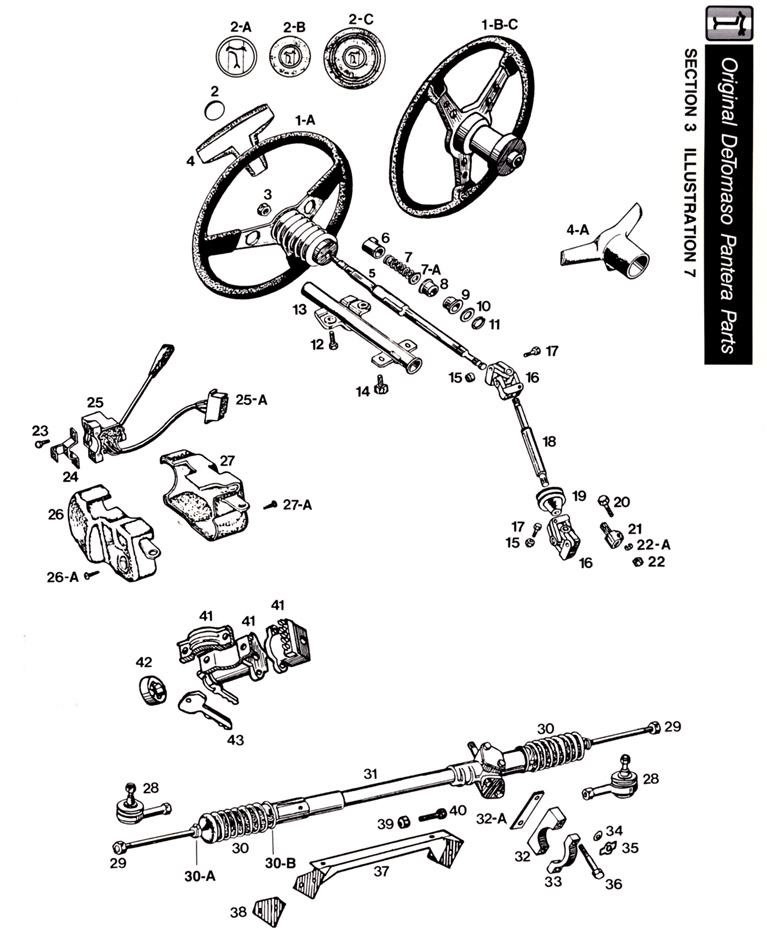

Please click here to view larger image



Section 3 Illustration 7

Illustration Number

Description

Part Number

1A

Steering Wheel 71-74 Except GTS

03001A

1B

Steering Wheel 74 GTS Black 3 Spoke w/GHIA Crest

03001B

1C

Steering Wheel GT5 Black Leather 3 Spoke DeTomaso Logo

03001C

1C

Steering Wheel Gr5 with Choice of Color (Special Order)

03001D

2A

Emblem Steering Wheel Center Early 1971
(Gold Trim w/DeTomaso Logo)

03002A

2B

Emblem Steering Wheel Center 71-74 Except GTS
(Black w/DeTomaso Logo)

030028

2C

Emblem Steering Wheel Center GTS Not Replaced



2C

Emblem GT5 Black Plastic Snap in Type w/Logo

03002C

3

Nut Steering Wheel Retaining 9/16 x 18 ELN

03003A

4

Pad Steering Wheel Upper (Rubber)

03004A

4A

Trim Steering Wheel Lower (Plastic)

03OG4B

5

Shaft Steering Column Upper

03005A

6

Cam Turn Signal Canceling

03006A

7

Spring Steering Column Upper Bearing

03007A

7A

Spacer Steering Shaft Spring

03008A

8

Bearing Steering Column Upper

03009A

Bearing Steering Column Lower

03010A

10

Washer Lower Bearing

03011A

11

Retaining Spring

03012A

12

Bolt Steering Column to Dash M8 x 1.25 x 20mm Allen Head

03013A

13

Tube Steering Column

03014A

13

 Tube Steering Column    GT5-S From #9395
(w/New Type Ignition Switch #03038B)

03014B

14

Bolt Steering Column to Dash M8 x 1.25 x 16mm

01013A

15

Nut Steering Column Joint MB x 1.25 ELN

01010A

16

Joint (Universal) Steering Shaft

03015A

17

Bolt Steering Column Joint M8 x 1.25 x 35

03016A

18

Shaft Steering Column Lower w/Slip Joint

03017A

19

Boot Steering Shaft at Floor

03018A

20

Bolt Steering Shaft Coupler 1/4" x 28 x 1-1/2"

03019A

21

Coupler Steering Gear Input Shaft

03020A

22

Nut Steering Shaft Coupler 1/4 x 28

03021A

22A

Lock Washer 1/4"

03022A

23

Screw Bracket to Turn Signal Switch   10 - 24 x 1/2"

03023A

24

Bracket Turn Indicator Upper Column

03024A

25

Switch Assembly Turn Indicator

03025A

25A

Connection Turn Signal Switch Wires

03025B

26

Trim Steering Column RH for Ignition Switch

03026A

26

Trim Steering Column RH for Ignition Switch
(From #9395) GT5-S

03026C

26A

Screw Sheet Metal #10 x 3/4"

03026B

27

Trim Steering Column LH for Turn Signal Switch

03027A

27

Trim Steering Column LH for Ignition Switch
(From #9395) GT5-S

03027C

27A

Screw Countersunk Phillips 8 - 32 x 5/16

03027B

28

Tie Rod End with Nut

03028A

29

Nut Tie Rod Jamb to Steering Rack 1/2"  x 20

03029A

30

Boot Steering Rack End Seal

03030A

30A

Clamp Steering Rack Boot (Outer)

03030B

30B

Clamp Steering Rack Boot (Inner)

03030C

31

Steering Rack Assembly

03031A

32

Bracket Steering Rack Mounting Upper
(A-Dimension 25mm)

03032A

32

Bracket Steering Rack Mounting Upper
(A-Dimension 33.7mm) Replaced by Above



32A

Spacer Steering Rack Mounting

03033A

33

Bracket Steering Rack Mounting     Lower

03034A

34

Washer Flat 8mm

01009A

34

Washer Lock 8mm

02014A

35

Lock Tab (NIR-Replaced by Lock Washer)



36

Bolt Steering Rack Mounting M8 x 1.25 x 70mm

03035A

36

Bolt Steering Rack Mounting Used w/Spacer #32
MB x 1.25 x 80mm

03035B

37

Reinforcement Steering Rack Mounting

03036A

38

Spacer Steering Gear Reinforcement

03037A

39

Nut M8 x 1.25 ELN

01010A

40

Bolt M8 x 1.25 x 20mm

02013A

41

Ignition Switch & Lock

03038A

41

Ignition Switch & Lock (From #9395) GT5-S

03038B

42

Bezel Ignition Switch (Black Plastic)

03039A

43

Key Ignition (Blank)

03040A

43

Key Ignition (Blank) for Switch GT5-S (From #9395)

03040B
