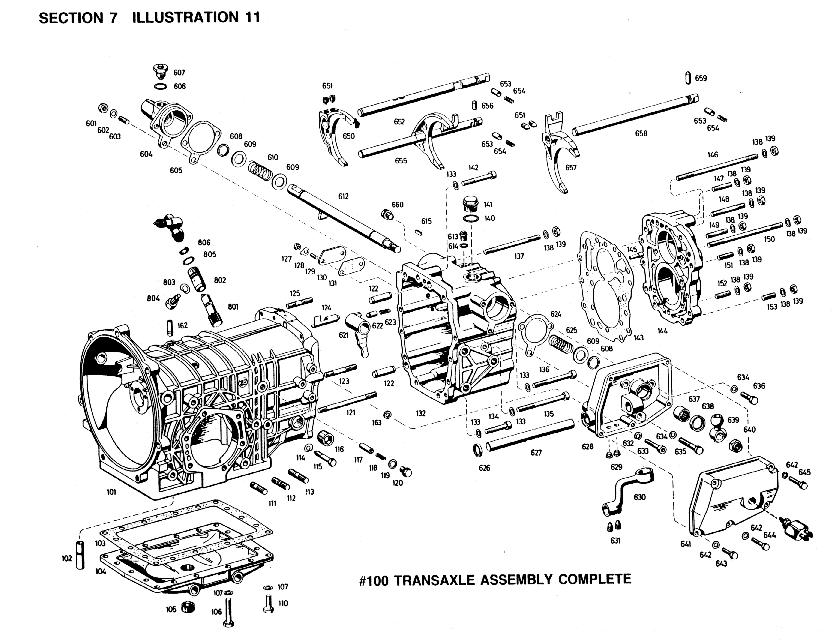

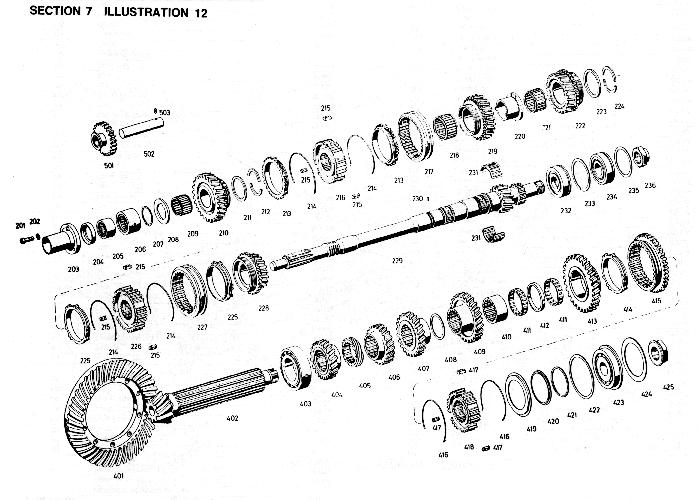

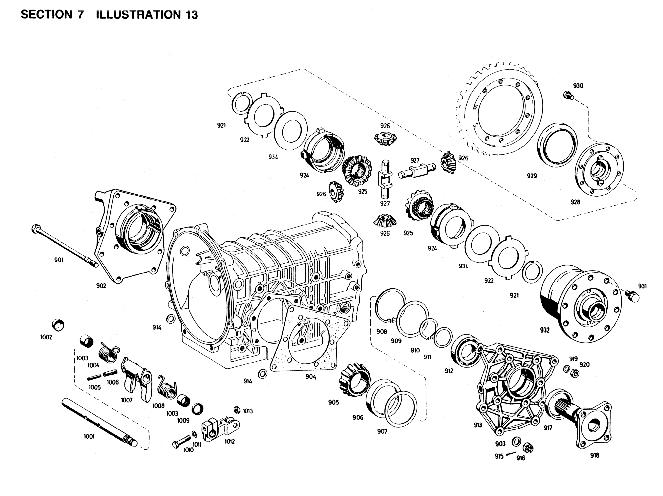

Section 7 Illustration 11
|
Illustration Number |
Gearbox Housing Group Description |
Part Number |
|
100 |
Transaxle Assembly Type 1 |
07100A |
|
100 |
Transaxle Assembly Type 2 |
07100B |
|
101 |
Gear Housing |
07101A |
|
102 |
Pipe |
07102A |
|
103 |
Gasket |
07103A |
|
104 |
Cover |
07104A |
|
105 |
Drain Plug |
0715A |
|
106 |
Screw |
07106A |
|
107 |
Spring Washer |
07107A |
|
108 |
Nut |
07108A |
|
110 |
Screw |
07110A |
|
111 |
Stud |
07111A |
|
112 |
Stud |
07112A |
|
113 |
Stud |
07113A |
|
114 |
Spring Washer |
07114A |
|
115 |
Screw |
07115A |
|
116 |
Drain Plug |
07116A |
|
117 |
Securing Peg |
07117A |
|
118 |
Compression Spring |
07118A |
|
119 |
Ring |
07119A |
|
120 |
Drain Plug |
07120A |
|
121 |
Stud |
07121A |
|
122 |
Dowel |
07122A |
|
123 |
Stud |
07123A |
|
124 |
Oil Pipe |
07124A |
|
125 |
Stud |
07125A |
|
126 |
Breather |
07126A |
|
127 |
Nut |
07127A |
|
128 |
Lock Washer |
07128A |
|
129 |
Stud |
07129A |
|
130 |
Cover |
07130A |
|
131 |
Gasket |
07131A |
|
132 |
Gearbox Cover |
07132A |
|
133 |
Spring Washer |
07133A |
|
134 |
Cylindrical Screw |
07134A |
|
135 |
Cylindrical Screw |
07135A |
|
136 |
Cylindrical Screw |
07136A |
|
137 |
Stud |
07137A |
|
138 |
Spring Washer |
07138A |
|
139 |
Nut |
07139A |
|
140 |
Ring |
07140A |
|
141 |
Drain Plug |
07141A |
|
142 |
Cylindrical Screw |
07142A |
|
143 |
Gasket |
07143A |
|
144 |
Rear Cover |
07144A |
|
145 |
Oil Pipe |
07145A |
|
146 |
Stud |
07146A |
|
147 |
Stud |
07147A |
|
148 |
Stud |
07148A |
|
149 |
Stud |
07149A |
|
150 |
Stud |
07150A |
|
151 |
Stud |
07151A |
|
152 |
Stud |
07152A |
|
153 |
Stud |
07153A |
|
154 |
Angled Elbow |
07154A |
|
155 |
Nut |
07155A |
|
156 |
Ring |
07156A |
|
157 |
Top Cap |
07157A |
|
158 |
Ring |
07158A |
|
159 |
Shim |
07159A |
|
160 |
Cover Plate |
07160A |
|
161 |
Ball |
07161A |
|
162 |
Breather Pipe |
07162A |
|
163 |
Shim |
07163A |
|
164 |
Nut |
07164A |
|
165 |
Stud |
07165A |
|
166 |
Spring Washer |
07166A |
|
|
GEAR CHANGE GROUP |
|
|
601 |
Nut |
07601A |
|
602 |
Spring Washer |
07602A |
|
603 |
Stud |
07603A |
|
604 |
Mounting Bracket |
07604A |
|
605 |
Gasket |
07605A |
|
606 |
Ring |
07606A |
|
607 |
Interlock Peg |
07607A |
|
608 |
V Ring |
07608A |
|
609 |
Shim |
07609A |
|
610 |
Compression Spring |
07610A |
|
612 |
Gear Shift Operating Shaft CPL. |
07612A |
|
613 |
Plug |
07613A |
|
614 |
Ring |
07614A |
|
615 |
Spring |
07615A |
|
621 |
Rear. R. Gear Selectro Lever CPL. |
07621A |
|
622 |
Detent Bolts |
07622A |
|
623 |
Compression Spring |
07623A |
|
624 |
Gasket |
07624A |
|
625 |
Compression Spring |
07625A |
|
626 |
Oil Seal |
07626A |
|
627 |
Gear Shift Operating Shaft |
07627A |
|
628 |
Selector Housing CPL. |
07628A |
|
629 |
Plug |
07629A |
|
630 |
Selector Arm |
07630A |
|
631 |
Grub Screw |
07631A |
|
632 |
Spring Ring |
07632A |
|
633 |
Cylindrical Screw |
07633A |
|
634 |
Spring Washer |
07634A |
|
635 |
Screw |
07635A |
|
636 |
Screw |
07636A |
|
637 |
Needle Bearing |
07637A |
| 638 | Shaft Seal | 07638A |
| 639 | Selector Finger | 07639A |
| 640 | Nut | 07640A |
| 641 | Selector Cover | 07641A |
| 642 | Spring Washer | 07642A |
| 643 | Screw | 07643A |
| 644 | Screw | 07644A |
| 645 | Screw | 07645A |
| 650 | Fourth + Fifth Gear Selector Fork | 07650A |
| 651 | Grub Screw | 07651A |
| 652 | Fourth + Fifth Gear Selector Rail | 07652A |
| 653 | Selector Pad | 07653A |
| 654 | Cylindrical Screw Compression Spring | 07654A |
| 655 | Second + Third Gear Selector Rail | 07655A |
| 656 | Locking Bar | 07656A |
| 657 | First Gear Selector Fork | 07657A |
| 658 | First Gear Selector Rail | 07658A |
| 659 | Locking Bar | 07659A |
| 660 | Drain Plug | 07660A |
| SPEEDO DRIVE GROUP | ||
| 801 | Speedo Shaft Type 1 Transaxle | 07801A |
| 801 | Speedo Shaft Type 2 Transaxle | 07801B |
| 802 | Speedo Pinion Bush | 07802A |
| 803 | Shim | 07803A |
| 804 | Screw | 07804A |
| 805 | Ring | 07805A |
| 806 | Shaft Seal | 07806A |
|
