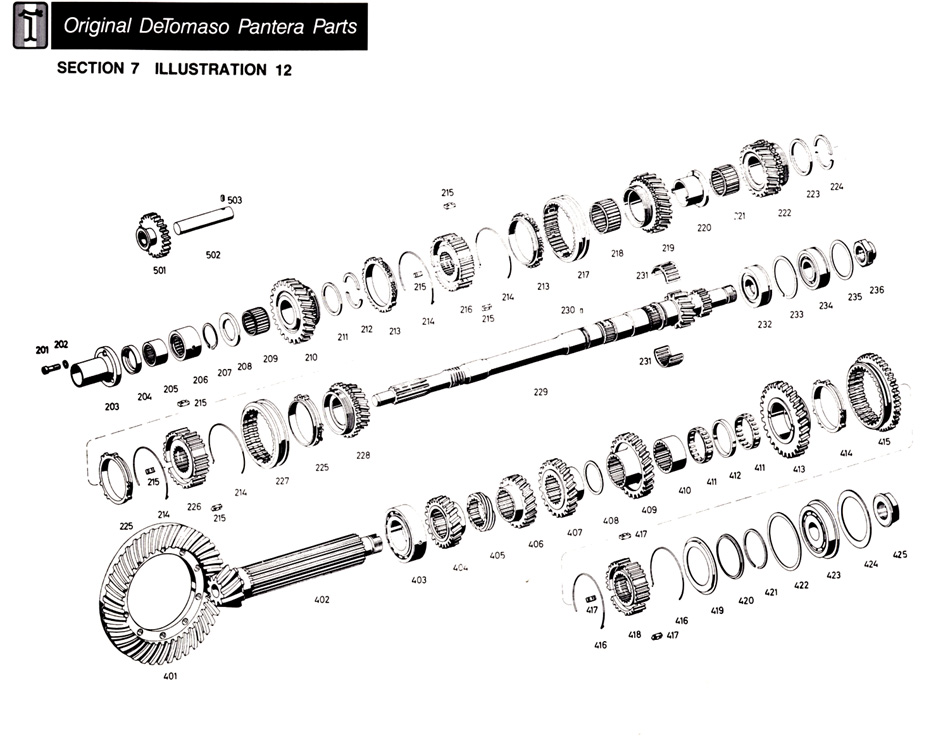

Section 7 Illustration 12
|
|
INPUT SHAFT GROUP |
|
|
201 |
Cylindrical Screw |
07201A |
|
202 |
Spring Washer |
07202A |
|
203 |
Guiding Tube |
07203A |
|
204 |
Shaft Seal |
07204A |
|
205 |
Needle Bearing |
07205A |
|
206 |
Needle Bearing |
07206A |
|
207 |
Circlip |
07207A |
|
208 |
Thrust Washer |
07208A |
|
209 |
Needle Cage |
07209A |
|
210 |
Fifth Gear CPL. |
07210A |
|
211 |
Thrust Washer |
07211A |
|
212 |
Split Shim |
07212A |
|
213 |
Synchro Ring (Steel) |
07213A |
|
214 |
Synchro Spring |
07214A |
|
215 |
Pressure Piece |
07215A |
|
216 |
Synchrobody |
07216A |
|
217 |
Sliding Sleeve |
07217A |
|
218 |
Needle Cage |
07218A |
|
219 |
Fourth Gear CPL. |
07219A |
|
220 |
Bearing Bush |
07220A |
|
221 |
Needle Cage |
07221A |
|
222 |
Third Gear CPL. |
07222A |
|
223 |
Thrust Washer |
07223A |
|
224 |
Split Shim |
07224A |
|
225 |
Synchro Ring (Steel) |
07225A |
|
226 |
Synchrobody |
07226A |
|
227 |
Sliding Sleeve |
07227A |
|
228 |
Second Gear CPL. |
07228A |
|
229 |
Input Shaft |
07229A |
|
230 |
Dowel |
07230A |
|
231 |
Needle Cage |
07231A |
| 232 | Roller Bearing | 07232A |
| 233 | Spring Ring | 07233A |
| 234 | Angular Contact Ball Bearing | 07234A |
| 235 | Shim | 07235A |
| 236 | Nut | 07236A |
| Output Shaft Group | ||
| 401-402 | Ring and pinion ratio 3.56-1 | 07401A |
| 401-402 | Ring and pinion ratio 3.78-1 | 07401B |
| 401-402 | Ring and pinion ratio 4.00-1 | 07401C |
| 401-402 | Ring and pinion ratio 4.22-1 | 07401D |
| 401-402 | Ring and pinion ratio 4.62-1 | 07401E |
| 401-402 | Ring and pinion ratio 5.25-1 | 07401F |
| 403 | Roller Bearing | 07403A |
| 404 | Fifth Gear | 07404A |
| 405 | Speedo worm | 07405A |
| 406 | Fourth Gear | 07406A |
| 407 | Third Gear | 07407A |
| 408 | Spacer | 07408A |
| 409 | Second Gear | 07409A |
| 410 | Inner Ring | 07410A |
| 411 | Needle Cage | 07411A |
| 412 | Ring | 07412A |
| 413 | First Gear | 07413A |
| 414 | Synchro Ring | 07414A |
| 415 | Reverse Gear Sliding Sleeve | 07415A |
| 416 | Synchro Spring | 07416A |
| 417 | Pressure Piece | 07417A |
| 418 | Synchrobody CPL. | 07418A |
| 419 | Locating Plate | 07419A |
| 420 | Circlip | 07420A |
| 421 | Spring Ring | 07421A |
| 422 | Spacer | 07422A |
| 423 | Angular Contact Ball Bearing | 07423A |
| 424 | Spacer | 07424A |
| 425 | Nut | 07425A |
| Reverse Gear Assembly Group | ||
| 501 | Reverse idler gear CPL. | 07501A |
| 502 | Reverse idler shaft | 07502A |
| 503 | Dowel | 07503A |
|
